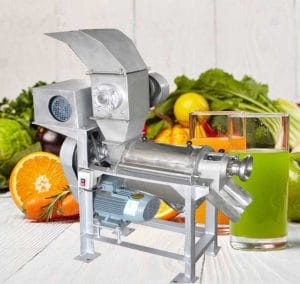

自动胡萝卜榨汁机用于从新鲜胡萝卜中制成果汁胡萝卜。This carrot juice extractor machine is suitable for juicing tomato, pineapple, apple, orange and other fruits and vegetables. This juice making machine can automatically finish the process of milling, extract juice and de-slagging. All the parts touching food are made of 304 stainless steel which can keep the juice clean and healthy.
Table of Contents
Working Principle of Carrot Juice Making Machine
The main structure is the crushing device which installed above the inlet hopper.
There are four groups running a knife and one group stationary knife. Running knife cut the fruit by rotating with axis to 2-5mm piece and then into the spiral juicing part directly to make juice. The crushing part takes the function of improving the juice rate.
The main structure of the juicer is the helix, the helix diameter is more and bigger and the screw pitch is less and less small near dreg hopper. While the material impelled by a helix, as the pressure existing, the material which after crushing gets broken. The direction of helix is clockwise as the arrow direction.
添加来自Inlet Hopper的材料，然后按螺旋螺旋。然后，果汁流到底部的收集罐中，并从右侧的插座排出。当GAR降低并且Degs速率将降低时。但是，当GAR的体积太小时，将用果汁的过滤器挤出了渣reg的颗粒状。因此，GAR的大小取决于清理技术的客户需求。
Features of Carrot Extractor Making Machine
- This is a kind of spiral advancing extrusion.
- There are whole stainless steel and inner stainless steel type.
- It can make vegetable and fruit juice.
- 一种出口汁，一种出口水果和蔬菜果肉。
- Processing material is vegetable&fruit which is crushed into not more than 2*2cm size.
- We can supply you with different Filter screens according to your needs on the hole diameter.
Specification of Carrot Juice Extracting Machine
| Model | JUEX500 | JUEX1000 | JUEX1500 |
| Capacity(t/h) | 500kg/h | 1000kg/h | 1500kg/h |
| Overall dimension(mm) | 780*320*860 | 880*330*900 | 1300*700*1300 |
| Weight(kg) | 85 | 114 | 240 |
| Power(kw) | 1.5 | 2.2 | 4 |
| Screw diameter(mm) | 88 | 125 | 175 |
| Filter screen aperture(mm) | 0.6 | 0.6 | 0.6 |
| Rotate speed(r/min) | 380 | 380 | 380 |
| Voltage(V) | 220/380 | 220/380 | 220/380 |
| 材料 | SUS304 | SUS304 | SUS304 |
Working Video of Carrot Juice Extracting Machine
Company Profile
Romiter Machinery Co., Ltd. is a market-leading designer and a manufacturer of Carrot Processing Machine with 20 years’experience. In the past 20 years, we focused on researching and designing the machinery which could process the carrot into different types. Romiter Carrot Processing Machine meat Europe Quality Requirement. with CE Certification
Romiter Carrot Processing Machine is widely sold all over the world. Now, our main product includeCarrot Washing Peeling Machine,Carrot Size Sorting Machine,Carrot Chip Cutting Machine,Carrot Stick Cutting Machine,Carrot Cube Shape Cutting Machine,胡萝卜榨汁机,Carrot Dryer Machine,胡萝卜薯条制造机器,Dehydrated Carrot Chip Making Machine,胡萝卜袋剂量包装机、胡萝卜收割机Machine and other carrot related machine.
